Wood block for circular saw with sliding table
This table saw cutting system is designed to offer versatility and precision in cutting various types of lumber , both logs of wood with circular dimension such as poles and squared woods such as boards or beams . It can also handle cutting multiple pieces of wood at the same time, increasing work efficiency.
Thanks to the protection with holes along the right and left side, it is possible to keep an eye on the work and the cut, ensuring greater safety for the operator. The saw benches can be powered by single-phase, three-phase or via the tractor’s PTO, making them suitable for both domestic and professional jobs.

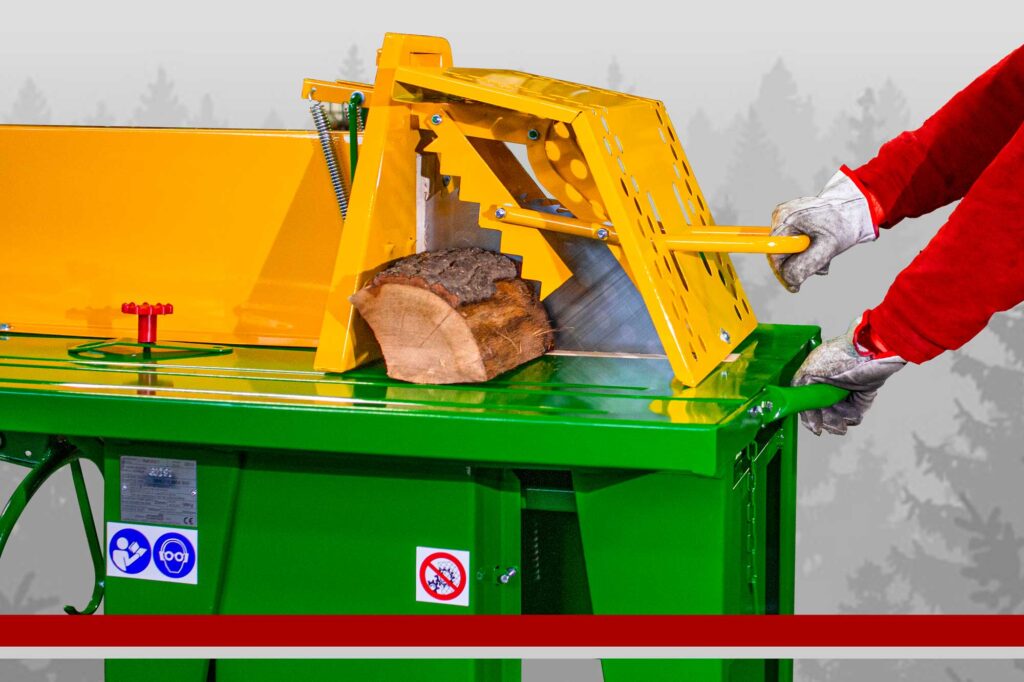

The log clamp must be lowered to ensure that the wood is stationary and secure before cutting. This mechanism prevents the sliding table from moving forward if the wood is not properly locked, reducing the risk of accidents and ensuring a precise and safe cut.
Only when the wood is stationary can the table move forward, allowing the wood to be sawn in a controlled and safe manner.

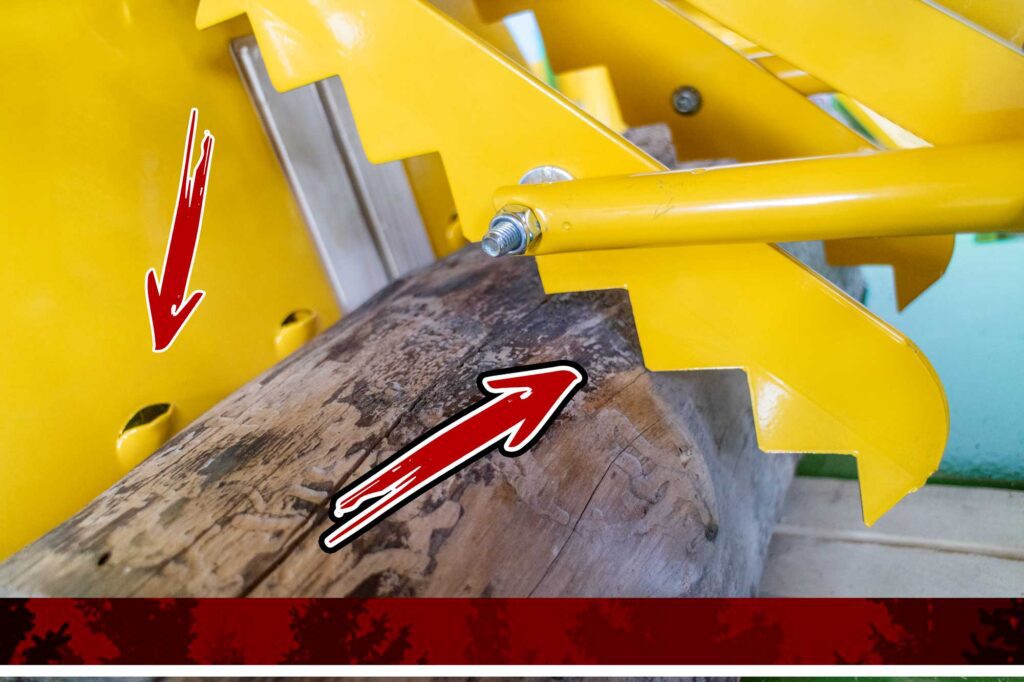

Serrated teeth for wood clamping
A key feature of this saw is the log holder, which ensures safety and precision when cutting. The log holder features a jaw and a clamp that firmly grip the log. This mechanism prevents the wood from moving or rotating during cutting, providing greater stability.
The presence of a serrated system increases the effectiveness of the log holder. The serrated teeth fit into the wood, providing an even more secure grip and minimizing the risk of slipping. By preventing the rotation of the log, the log holder reduces the risk of accidents, protecting the operator from possible injuries. The stability of the wood allows for more precise and clean cuts, improving the quality of the work.
The log holder is especially useful for those who work with firewood or in the forestry sector . It is an indispensable component for professional circular saws, such as those used for cutting large logs.

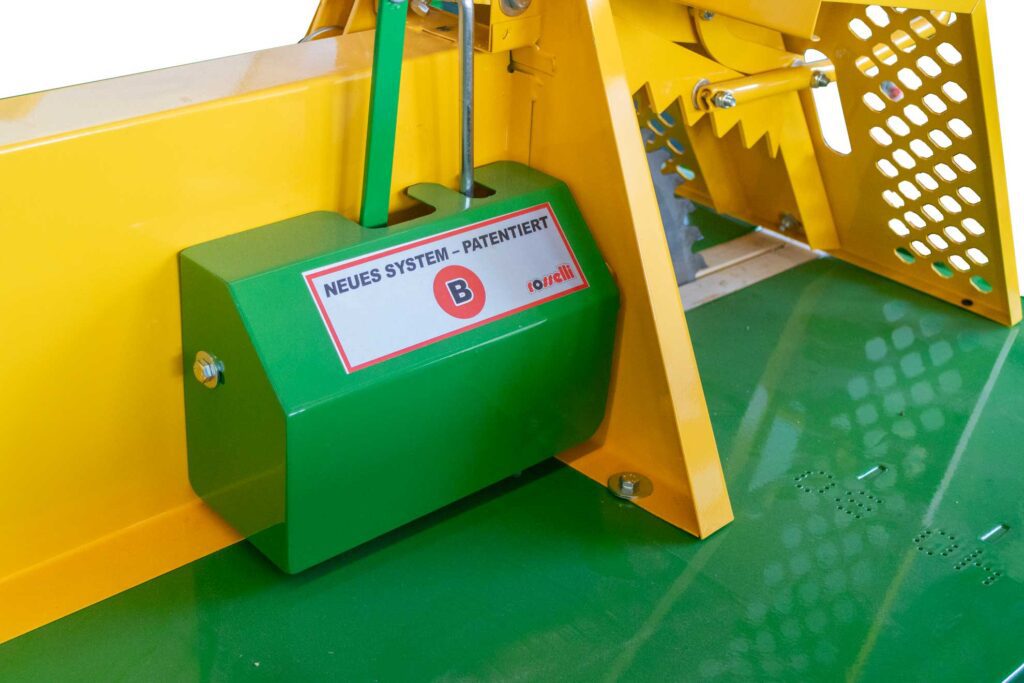

New patented system
Rosselli has introduced a cutting-edge wood clamping system that uses a lever mechanism to firmly secure the log and slide it towards the blade with extreme ease.
This innovative system, thanks to a precise balance of springs and levers, not only makes the work of the circular saw easier, but also offers significant support to the operator, allowing the wood to be clamped and sawed without any effort.
The combination of these elements guarantees a more efficient and less tiring wood cutting process, improving productivity and safety at work.
Serrated wood locking teeth
A wood clamping system for a table saw is essential to ensure safety and accuracy when cutting. The wood clamp is used to securely hold the piece of wood to the table saw, and can be adjusted to accommodate different sizes of wood. The rip fences ensure that the wood is cut in a straight line, and can be adjusted to keep the wood stable and aligned with the blade. Some table saws have a sliding table that only moves when the wood is clamped, increasing the safety and accuracy of the cut. The locking jaws hold the wood in place during the cut, preventing unwanted movement that could compromise the quality of the cut or cause accidents. The operation of the clamping system begins with placing the wood on the table saw and clamping it using the clamps or locking jaws. The rip fences are then adjusted to ensure that the wood is perfectly aligned with the blade. The series of circular saws that use this feature are the sliding table saws or the sliding guard saws .
The models are S-R100, S-R150, S-M650, S-M655, R-400, M-350, M-355 and Speedy 700 R.
